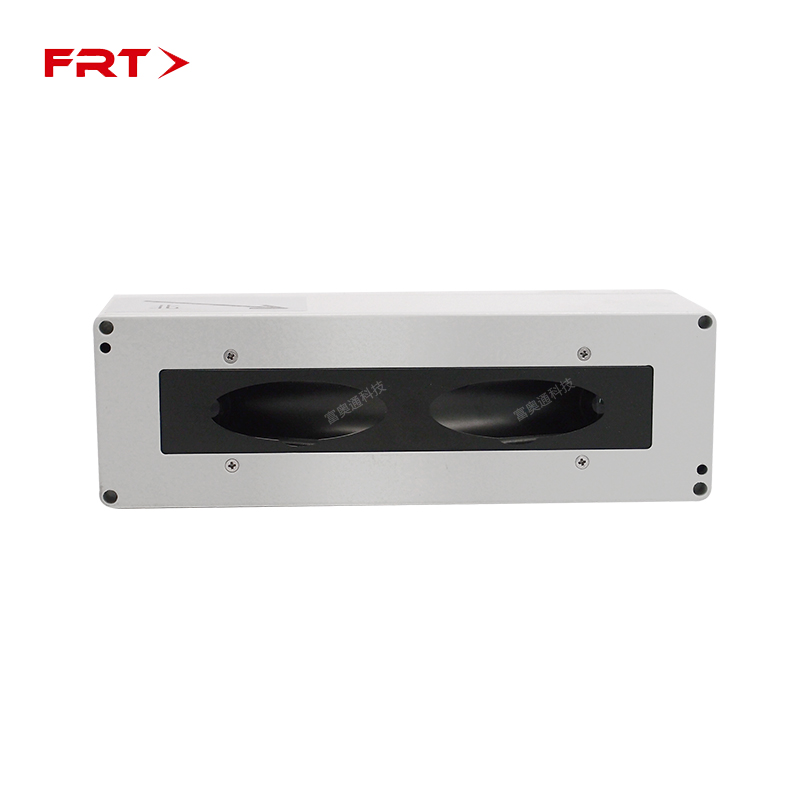

FRT VRE100 Micro Visibility Sensor

Model Number : FRT VRE100

Overview

The FRT VRE100 miniature visibility sensor is a compact model developed by our company based on the principle of aerosol front scattering visibility measurement instrument. It has the characteristics of small size, light weight, and easy mobility. The device adopts RS485 output and has two communication protocols, Modbus and ASCII, are available. Widely used in intelligent transportation, meteorological monitoring, maritime affairs, environmental protection and other industries.

Characteristic

Maintenance-free system design, easy installation
Standard communication protocol
9-30V wide power input range.with RS485 output (RS232 optional)
Industrial-grade protective casing ensures long-term durability
The instrument has extremely low power consumption

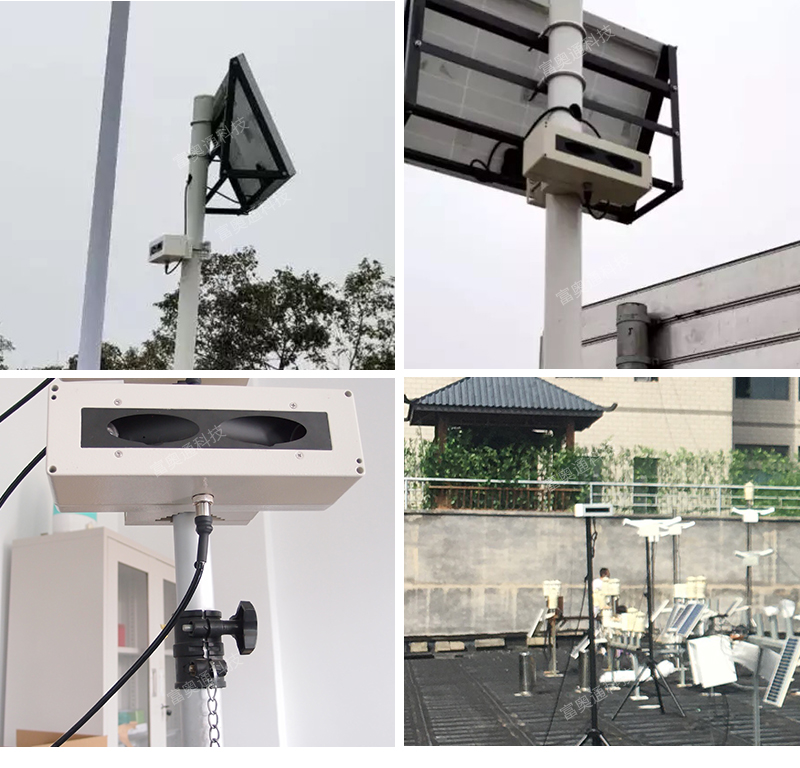

Applications

Technical Parameters

General

Measurement parameter

Detection range

Resolution

accuracy

measurement principle

Visibility

5m～2km

≤500m (error value±5%);

500m～2km(error value±10%);

Aerosol pre scattering

Equipped with heating function

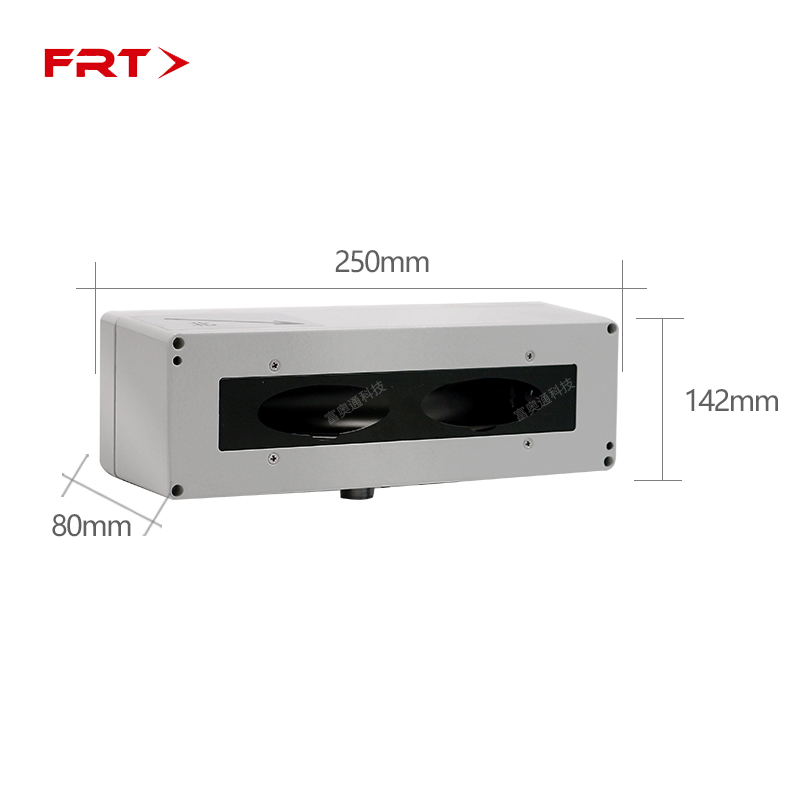

Size	Length: 250mm Width:80mm Height:142mm
Weight	About 2kg
Output interface	RS485
Instrument consistency	≤±4%
Data update interval	optional from 15 seconds to 600 seconds
Scattering angle coverage	39 °~51 ° forward scattering
Peak wavelength	960nm
Bandwidth	100nm
Power supply	9-30VDC（ Optional solar and 220V power supply）
Power consumption	<1W；Heating on state about 6W
Operation temperature	-40℃～+80℃
Relative humidity at work	0～100%Rh
Length	Default 3.5m (extendable)
Degrees of protection provided by enclosure	IP65
Material	Hard aluminum alloy, surface spray treatment
Agreement	Supports both ASCII protocol and Modbus RTU protocol
