VRE visibility sensor - Fronttech（Beijing）Limited Traffic weather sensor

WEATHER SENSOR

FRT VRE Visibility Sensor

Model Number : FRT VRE

Overview

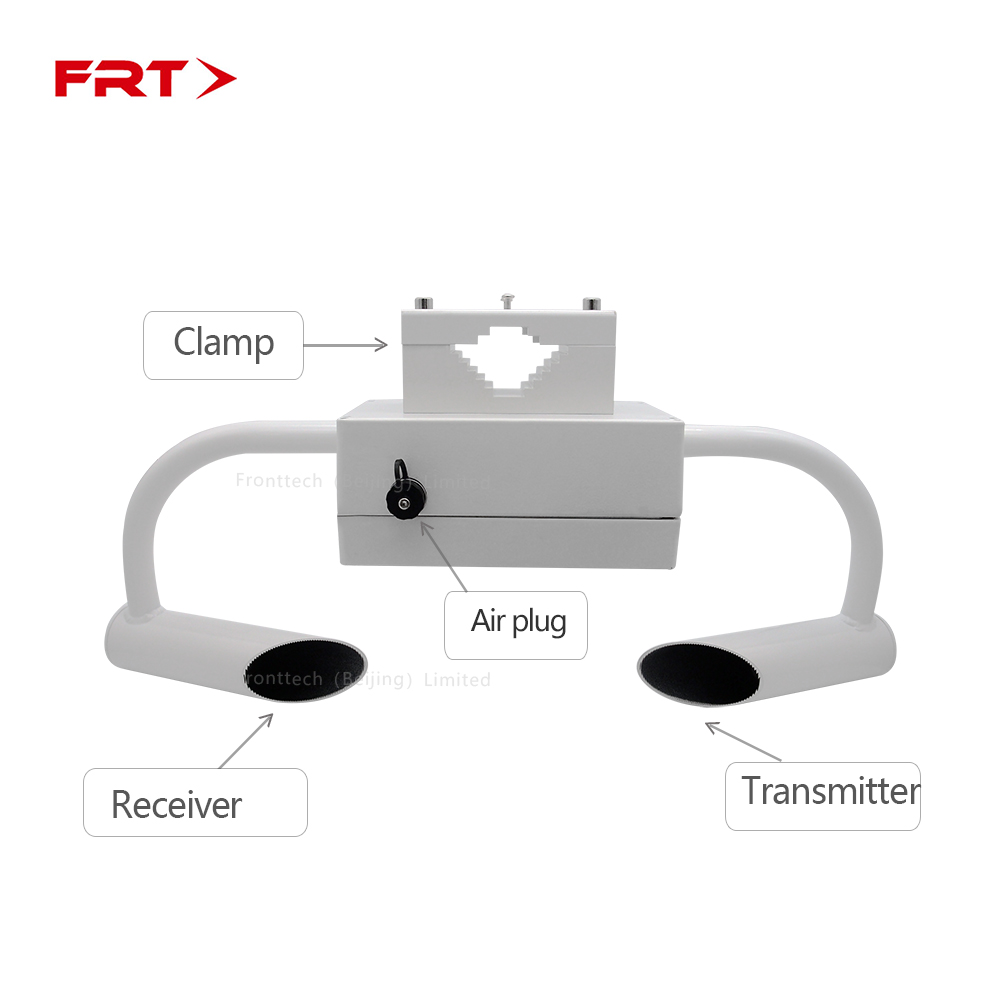

The FRT VRE visibility meter is an intelligent visibility monitoring device developed and designed by our company based on the principle of aerosol front scattering. This product consists of main components such as a light emitter, a light receiver, and a microprocessor controller. The measurement range can be selected from three ranges: 5m-10km, 30km, and 50km. It can also add modules for measuring rain, snow, and fog weather phenomena. The device adopts RS485 output and has two communication protocols: Modbus and ASCII code. The visibility meter provides users with accurate and real-time visibility data, which can effectively avoid safety hazards such as driving and sailing caused by fog, haze, and haze. It can be widely used in transportation departments such as meteorological stations, airports, highways, waterways, and large ships.

Characteristic

Maintenance-free system design, easy installation
Standard communication protocol
9-30V wide power input range.with RS485 output (RS232 optional)
Industrial-grade protective casing ensures long-term durability
The instrument has extremely low power consumption

Applications

Technical Parameters

General

Measurement parameter	Detection range	Resolution	Accuracy	Measurement principle
Visibility	5m～10km	1m	≤2km (error value±2%); 2Km～10km(error value±5%); ＞10km(error value±10%)	Aerosol pre scattering
Visibility	5m～30km
Visibility	5m～50km
Customizable 80km long range

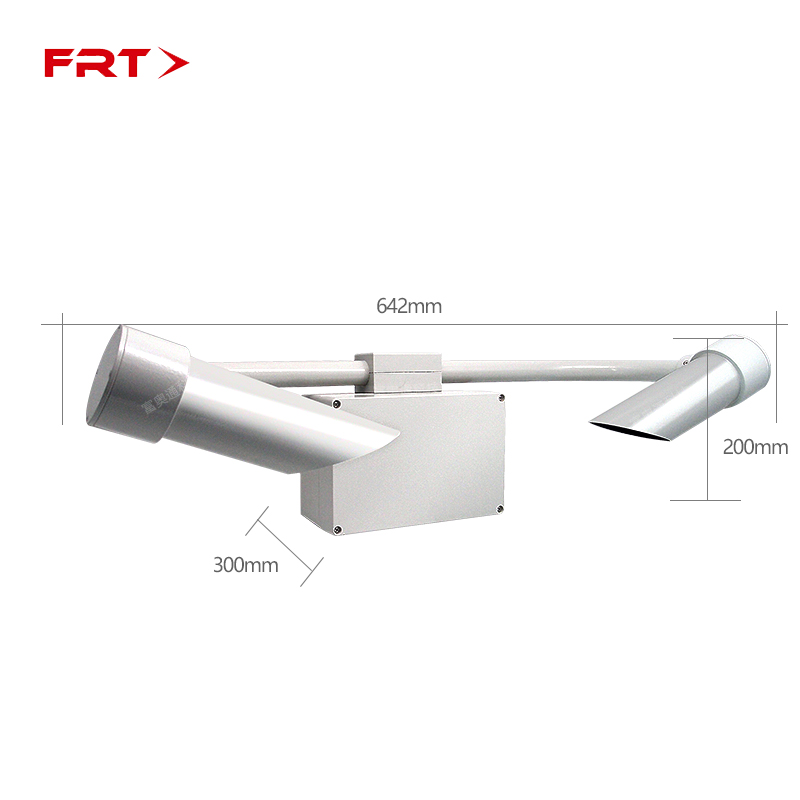

Size	Length: 610mm Width:230mm Height:230mm-300mm
Weight	About 3.35kg
Output interface	RS485, RS232 optional
Instrument consistency	≤±4%
Data update interval	Optional from 15 seconds to 600 seconds
Scattering angle coverage	39 °~51 ° forward scattering
Peak wavelength	860nm
Bandwidth	100nm
Power supply	9-30VDC（ Optional solar and 220V power supply）
Power consumption	<2W；Heating on state about 5.4W
Operation temperature	-40℃～+80℃
Relative humidity at work	0～100%Rh
Length	Default 3.5m (extendable)
Degrees of protection provided by enclosure	IP65
Material	Hard aluminum alloy, surface spray treatment
Agreement	Supports both ASCII protocol and Modbus RTU protocol
