WEATHER SENSOR

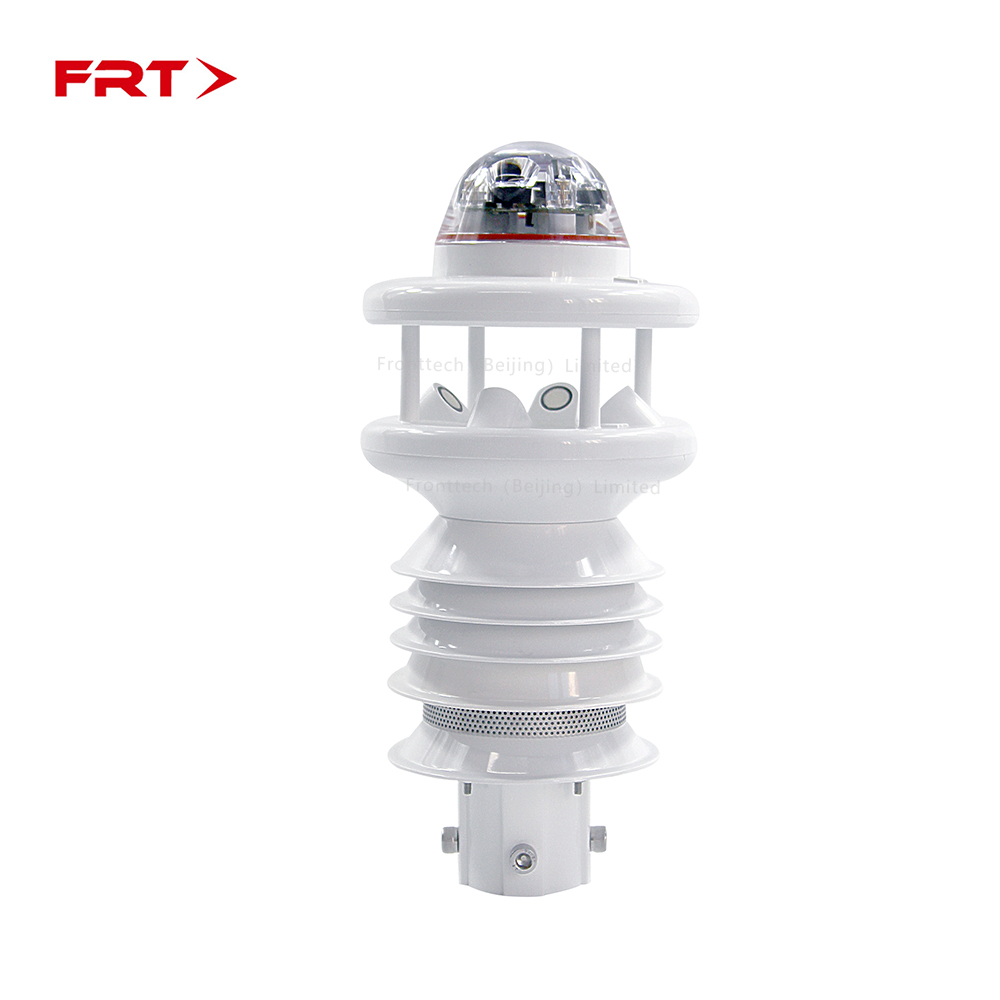

RDM06 Micro dust monitoring sensor
Model Number : FRT RDM06
Overview

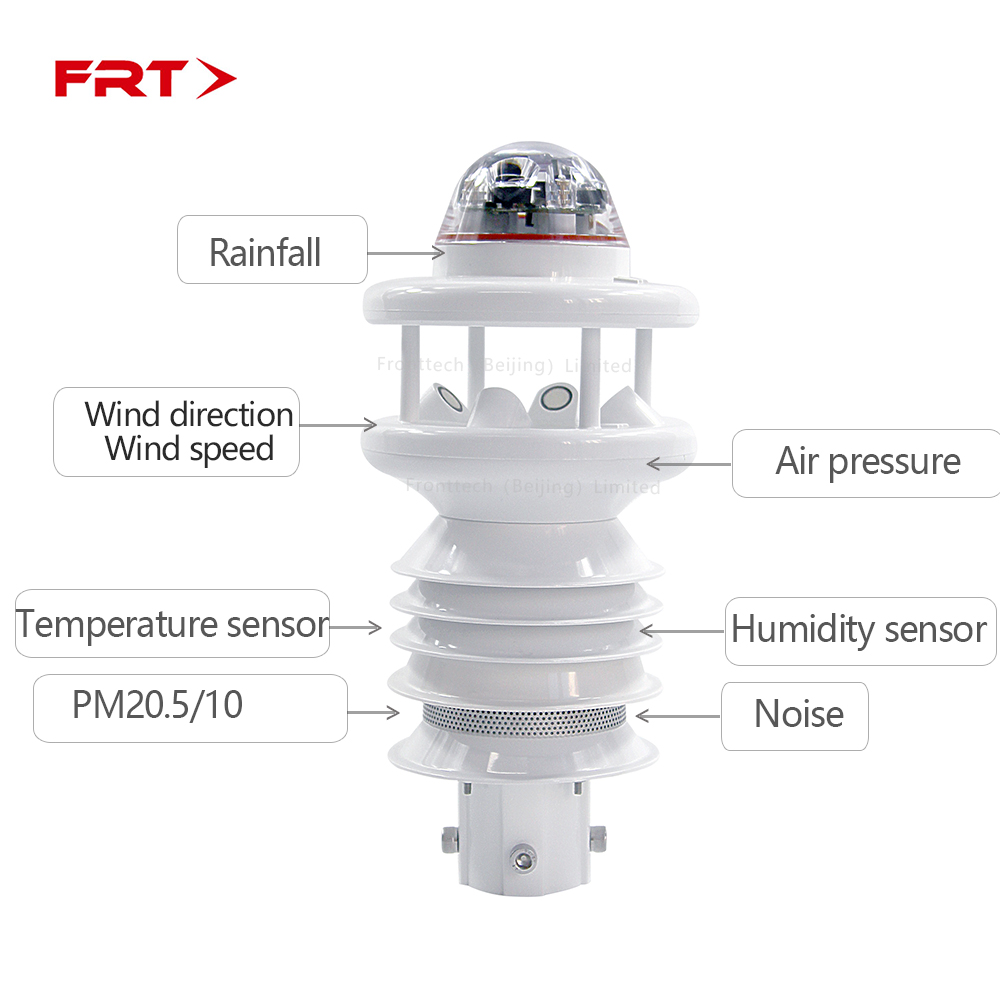

The FRT RDM06 micro integrated meteorological station is an advanced sensor independently developed by our company, specifically designed for measuring multi-element meteorological data. This meteorological station can simultaneously measure atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, PM2.5\PM10，Noise meteorological factors. The design of the FRT RDM micro integrated meteorological station aims to provide an efficient and reliable solution for environmental data collection, providing excellent technical support for users in the field of environmental monitoring.
Characteristic
- Maintenance-free system design, easy installation
- Standard communication protocol
- Ultra-low power consumption (0.4W), with RS485 output (RS232 optional)
- Industrial-grade protective casing ensures long-term durability
- Optional built-in modules such as COMPASS, GPRS, and GPS

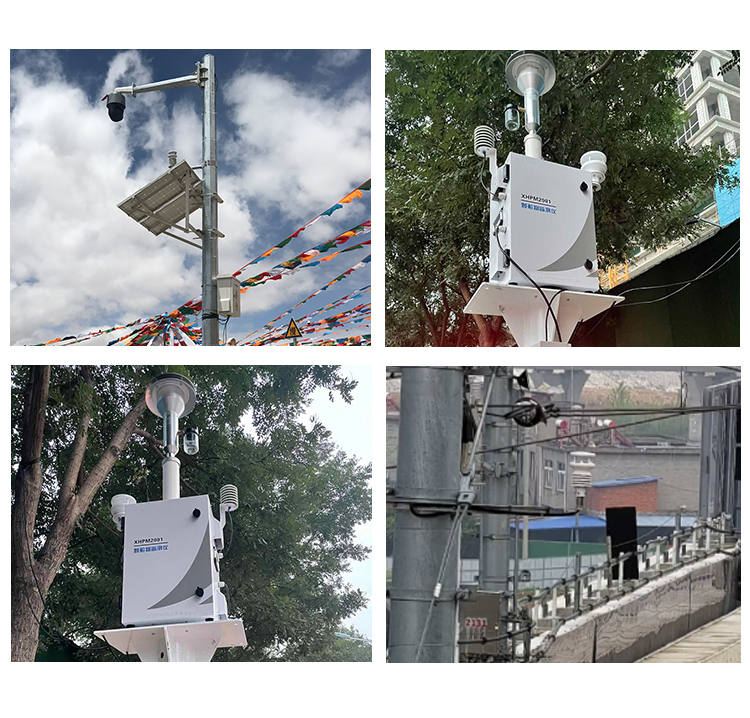

Applications
Technical Parameters
General
Measurement parameter | Detection range | Resolution | Accuracy | Measurement principle |
Temperature | -40℃～+60℃ | 0.1℃ | ±0.3℃ | Rtd |
Humidity | 0%~100%Rh | 0.1%Rh | ±3%Rh | Capacitance |
Pressure | 500～1100hpa | 0.1hpa | ±1hpa | Silicon piezoresistive type |
Wind direction | 0～360° | 1° | ±3° | Ultrasonic |
Wind speed | 0～55m/s | 0.1m/s | ±0.3m/s or 3% | Ultrasonic |
Pm2.5/10 | 0～1000μg/m3 | 0.3μg/m3 | ±10μg/m3或15% | Laser scattering |
Noise | 30 ～130dB | A-weighting (simulating human ear) | ±1.5dB | Capacitive type |
Optional functions include GPRS-a01, WiFi-a02, Ethernet-a03, electronic compass-b01, GPS-b02, and battery-d01 | ||||

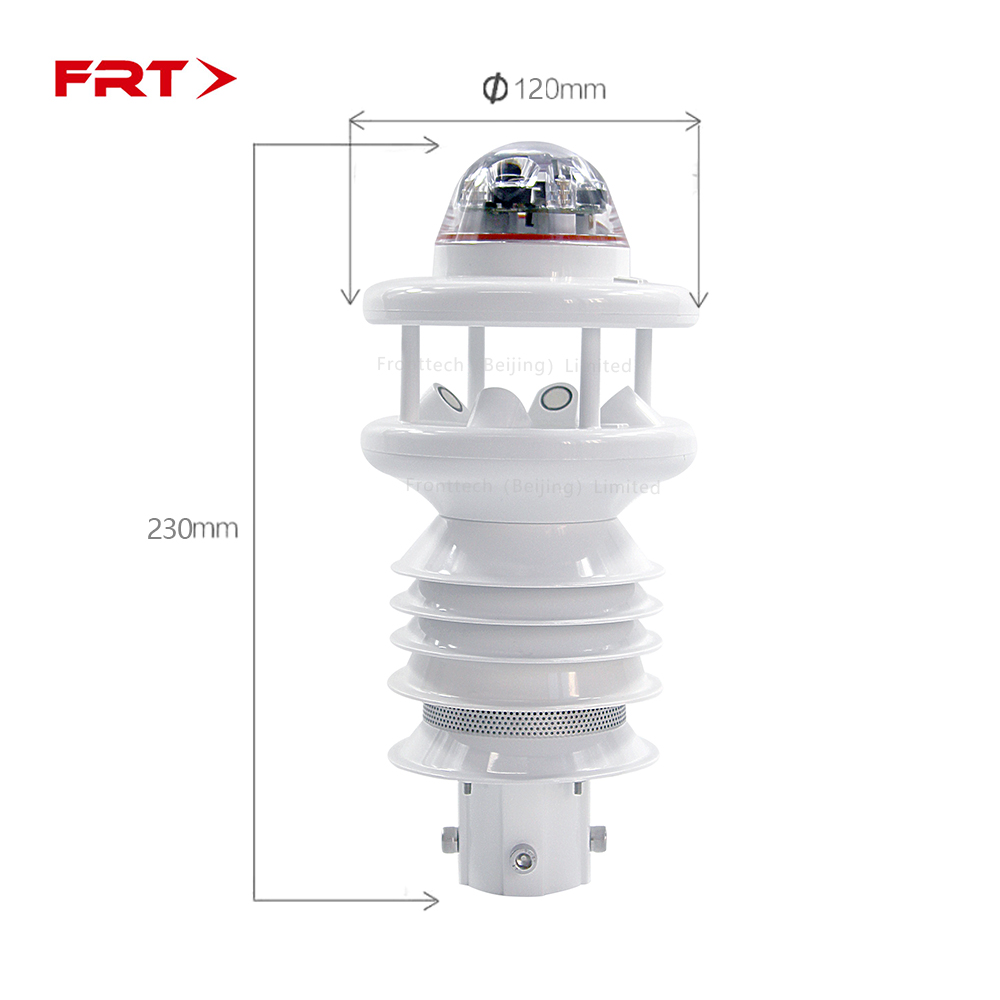

Size | Length: 120mm Width:120mm Height:230mm |
Weight | About 0.55kg |
Output interface | RS485, RS232, SDI12, 4-20mA, 0-5V optional |
Power supply | 9-30VDC（ Optional solar and 220V power supply） |
Power consumption | <0.4W |
Operation temperature | -40℃～+85℃ |
Relative humidity at work | 0～100%Rh |
Length | Default 3.5m (extendable) |
Degrees of protection provided by enclosure | IP65 |
Apply to | Pole diameter 30-36mm |
Agreement | Supports both ASCII protocol and Modbus RTU protocol simultaneously |
FAQ
1. who are we?
We are based in Beijing, China, start from 2015,sell to Southeast Asia(18.00%),North America(14.00%),Southern Europe(10.00%),Mid East(10.00%),South America(9.00%),Central America(8.00%),Eastern Europe(8.00%),Western Europe(8.00%),South Asia(5.00%),Africa(3.00%),Eastern Asia(3.00%),Northern Europe(2.00%),Domestic Market(1.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Meteorological sensor,Gas sensor,Agrometeorological station,Optical rain sensor,Data logger
4. why should you buy from us not from other suppliers?
Fronttech (Beijing) Co., Ltd is with high degree of product integration, strong research and development capabilities, quick delivery time, Professional product testing system, and a sound quality and after-sales protection system.
5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal;
Language Spoken:English,Chinese
Similar Products
FRT RDM Series Micro Dust monitoring sensor
Products
Option | Temperature | Humidity | Air pressure | Wind | Rain | Radiation /Light Intensity | Pm2.5/Pm10 | Noise | TSP |
RDM02 | ✔ | ||||||||
RDM03 | ✔ | ✔ | ✔ | ✔ | |||||
RDM06 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |||
RDM08 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
