FWS06 micro weather sensor

WEATHER SENSOR

Model Number : FRT FWS06

Overview

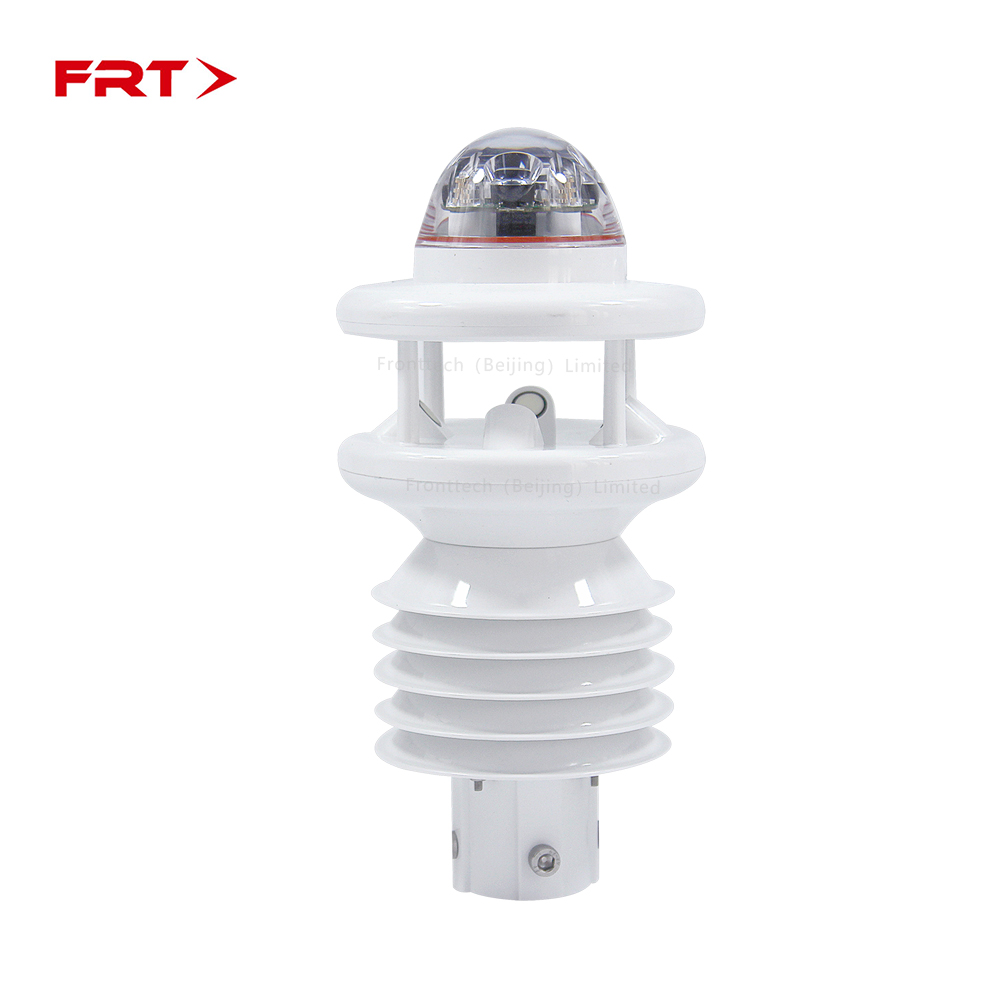

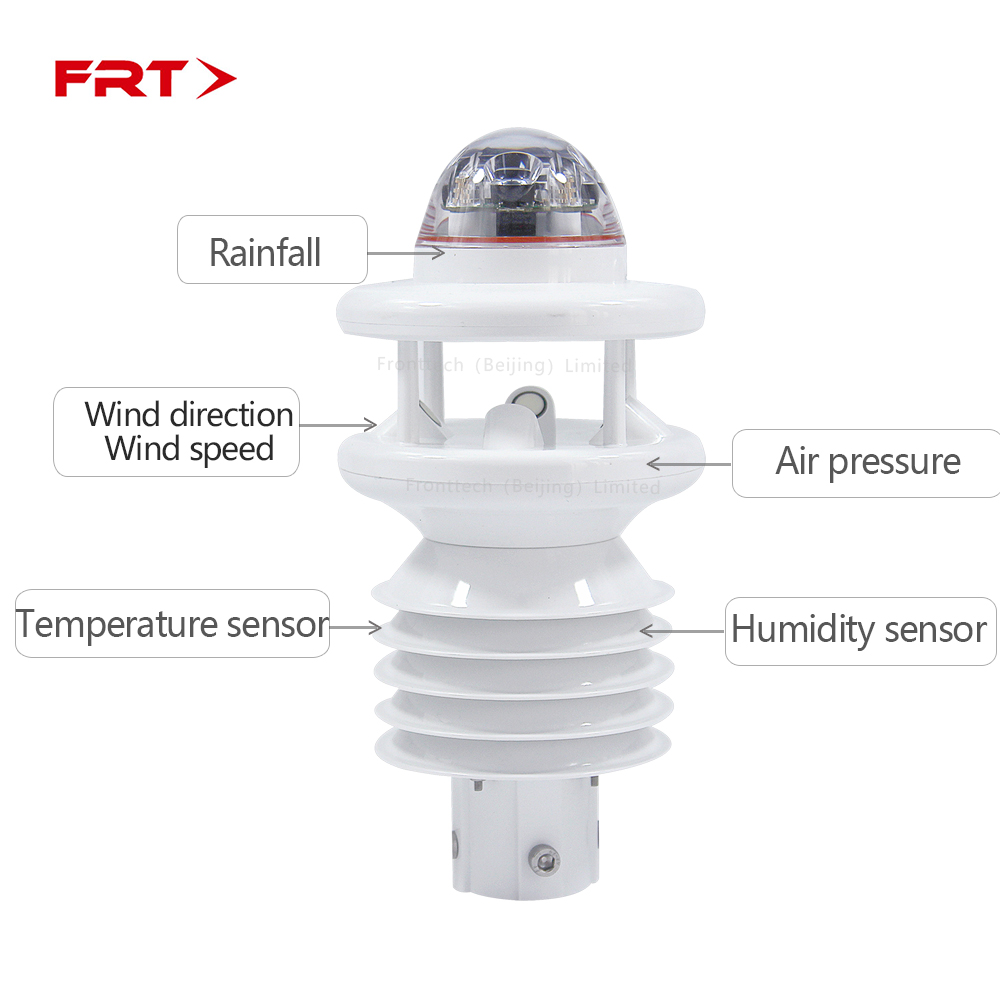

The FRT FWS06 micro integrated meteorological station is an advanced sensor independently developed by our company, specifically designed for measuring multi-element meteorological data. This series of meteorological stations can simultaneously measure various major meteorological elements such as atmospheric temperature, atmospheric humidity, wind speed, wind direction, air pressure, rainfall. The design of the FRT FWS06 micro integrated meteorological station aims to provide efficient and reliable meteorological data collection solutions, and provide excellent technical support for users in the field of meteorological monitoring.

Characteristic

Maintenance-free system design, easy installation
Standard communication protocol
Ultra-low power consumption (0.4W), with RS485 output (RS232 optional)
Industrial-grade protective casing ensures long-term durability
Optional built-in modules such as COMPASS, GPRS, and GPS

Applications

Technical Parameters

General

Measurement parameter	Detection range	Resolution	Accuracy	Measurement principle
Temperature	-40℃～+60℃	0.1℃	±0.3℃	Rtd
Humidity	0%~100%Rh	0.1%Rh	±3%Rh	Capacitance
Pressure	500～1100hpa	0.1hpa	±1hpa	Silicon piezoresistive type
Wind direction	0～360°	1°	±3°	Ultrasonic
Wind speed	0～55m/s	0.1m/s	±0.3m/s or 3%	Ultrasonic
Rainfall	0～5mm/min	0.01mm	±5%	Piezoelectric
Optional functions include GPRS-a01, WiFi-a02, Ethernet-a03, electronic compass-b01, GPS-b02, and battery-d01

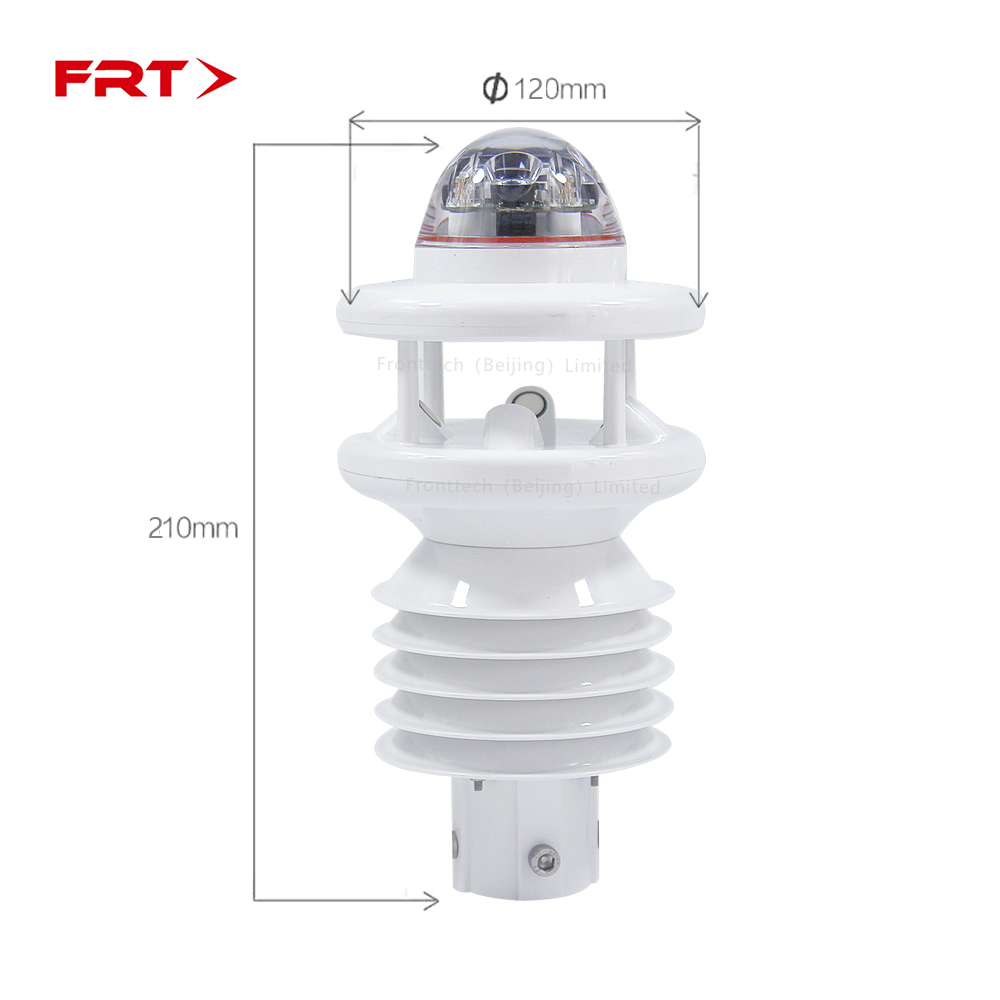

Size	Length: 120mm Width:120mm Height:210mm
Weight	About 0.5kg
Output interface	RS485, RS232, SDI12, 4-20mA, 0-5V optional
Power supply	9-30VDC（ Optional solar and 220V power supply）
Power consumption	<0.4W
Operation temperature	-40℃～+85℃
Relative humidity at work	0～100%Rh
Length	Default 3.5m (extendable)
Degrees of protection provided by enclosure	IP65
Apply to	Pole diameter 30-36mm
Agreement	Supports both ASCII protocol and Modbus RTU protocol simultaneously
