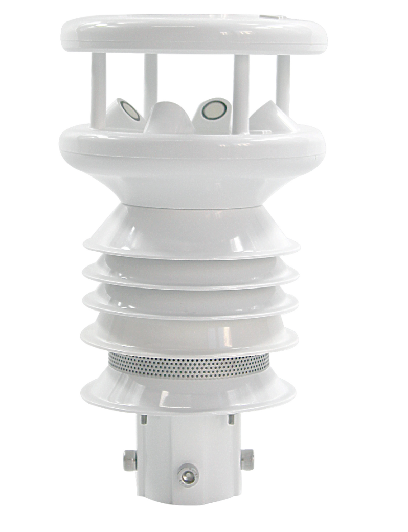

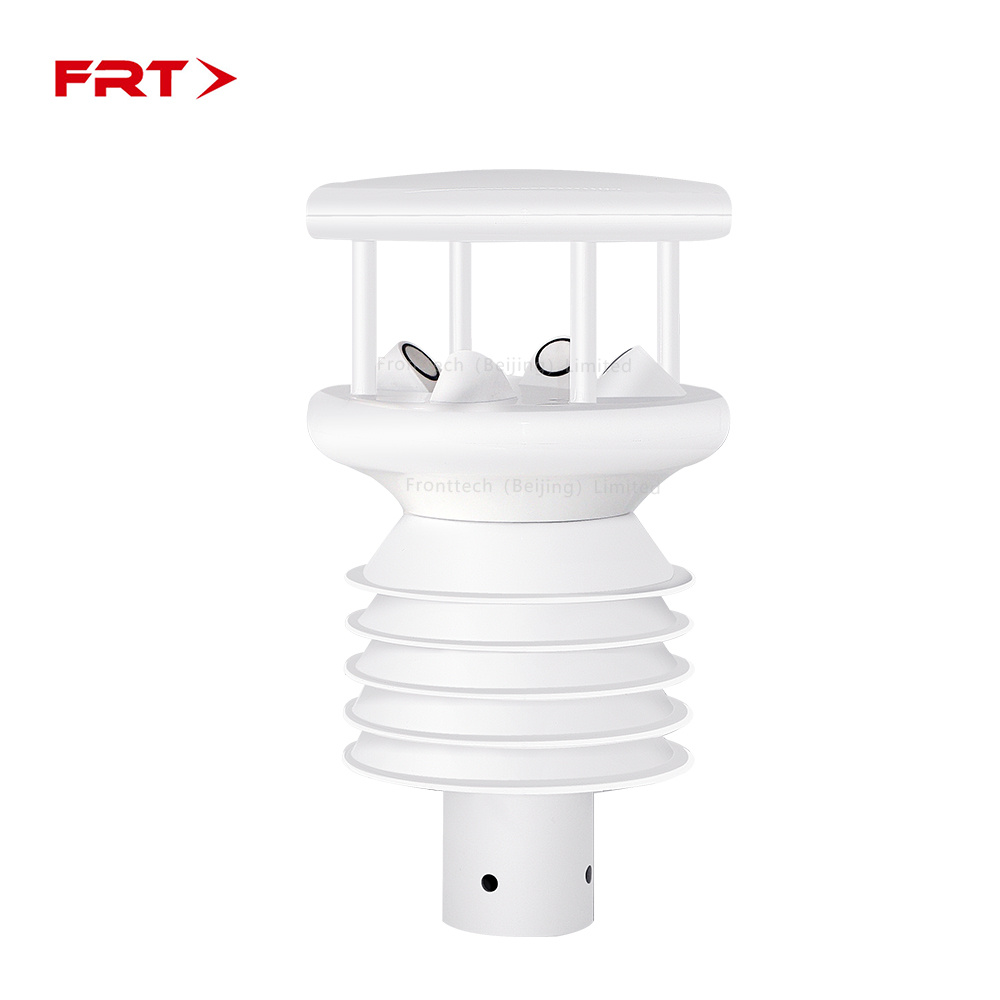

FWS05G Mobile meteorological sensor

WEATHER SENSOR

Model Number : FRT FWS05G

Overview

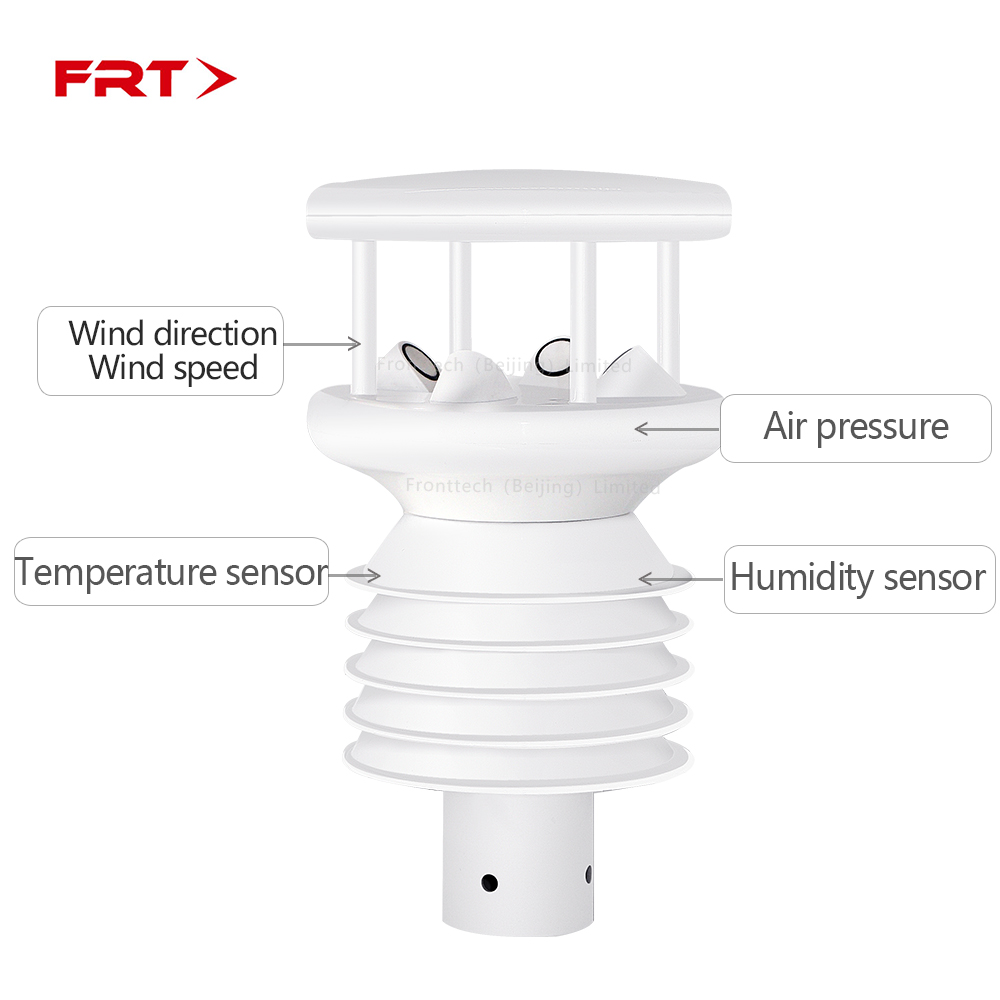

The FRT FWS05G mobile meteorological monitoring sensor is an advanced sensor independently developed by our company, which can be installed on mobile carriers such as vehicles, ships, drones, etc., and is specifically used for mobile measurement of various meteorological data. It can simultaneously measure various major meteorological elements such as atmospheric temperature, atmospheric humidity, wind speed, wind direction, and air pressure, among which wind speed and direction are calibrated in real-time by GPS to obtain real wind direction and real wind speed data. The design of the FRT FWS05G mobile meteorological monitoring sensor aims to provide an efficient and reliable mobile meteorological data collection solution, providing excellent technical support for users in the field of mobile meteorological monitoring.

Characteristic

Maintenance-free system design, easy installation
Standard communication protocol
Ultra-low power consumption (0.4W), with RS485 output (RS232 optional)
Industrial-grade protective casing ensures long-term durability
Optional built-in modules such as COMPASS, GPRS, and GPS

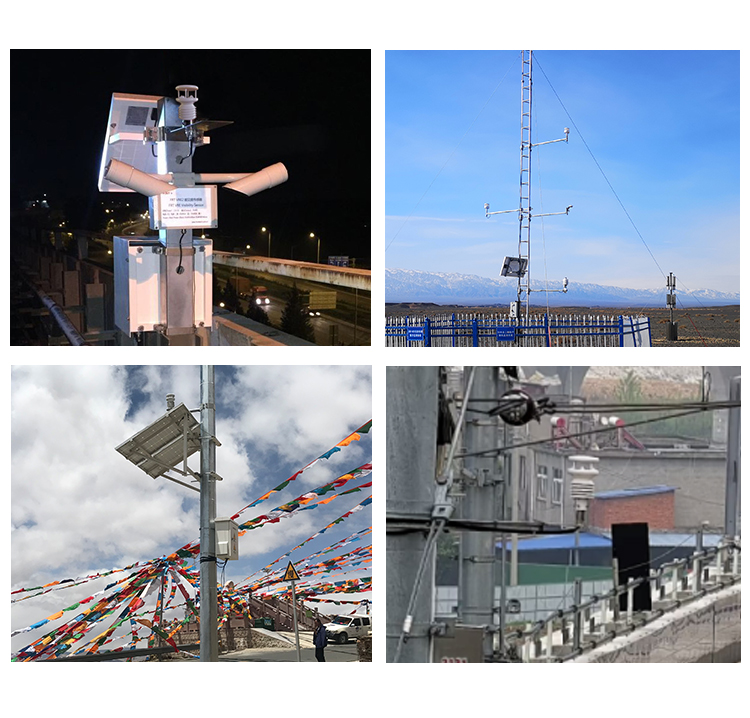

Applications

Technical Parameters

General

Measurement parameter	Detection range	Resolution	Accuracy	Measurement principle
Temperature	-40℃～+60℃	0.1℃	±0.3℃	Rtd
Humidity	0%~100%Rh	0.1%Rh	±3%Rh	Capacitance
Pressure	500～1100hpa	0.1hpa	±1hpa	Silicon piezoresistive type
Wind direction	0～360°	1°	±3°	Ultrasonic（GPS algorithm calibration）
Wind speed	0～55m/s	0.1m/s	±0.3m/s or 3%	Ultrasonic（GPS algorithm calibration）
Longitude and latitude information (optional display)
Measurement parameter	Detection range		Accuracy	Measurement principle
Longitude	0° ~ 180°		3m	GPS
Latitude	0° ~ 90°		3m	GPS
Optional functions include GPRS-a01, WiFi-a02, Ethernet-a03, electronic compass-b01, and battery-d01

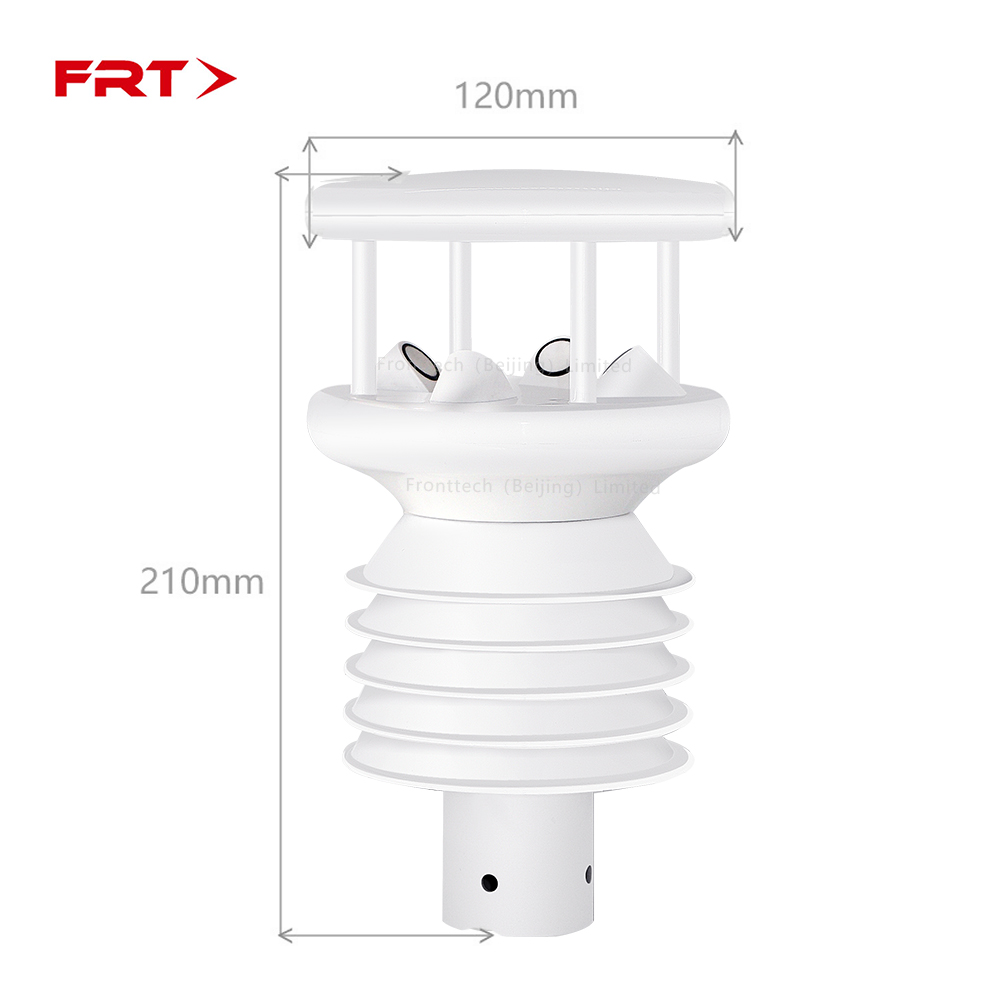

Size	Length: 120mm Width:120mm Height:210mm
Weight	About 0.7kg
Output interface	RS485, RS232, SDI12, 4-20mA, 0-5V optional
Power supply	9-30VDC（ Optional solar and 220V power supply）
Power consumption	<0.4W
Operation temperature	-40℃～+85℃
Relative humidity at work	0～100%Rh
Length	Default 3.5m (extendable)
Degrees of protection provided by enclosure	IP66
Apply to	Pole diameter 30-36mm
Agreement	Supports both ASCII protocol and Modbus RTU protocol simultaneously
