FWS02 micro weather sensor

WEATHER SENSOR

Model Number : FRT FWS02

Overview

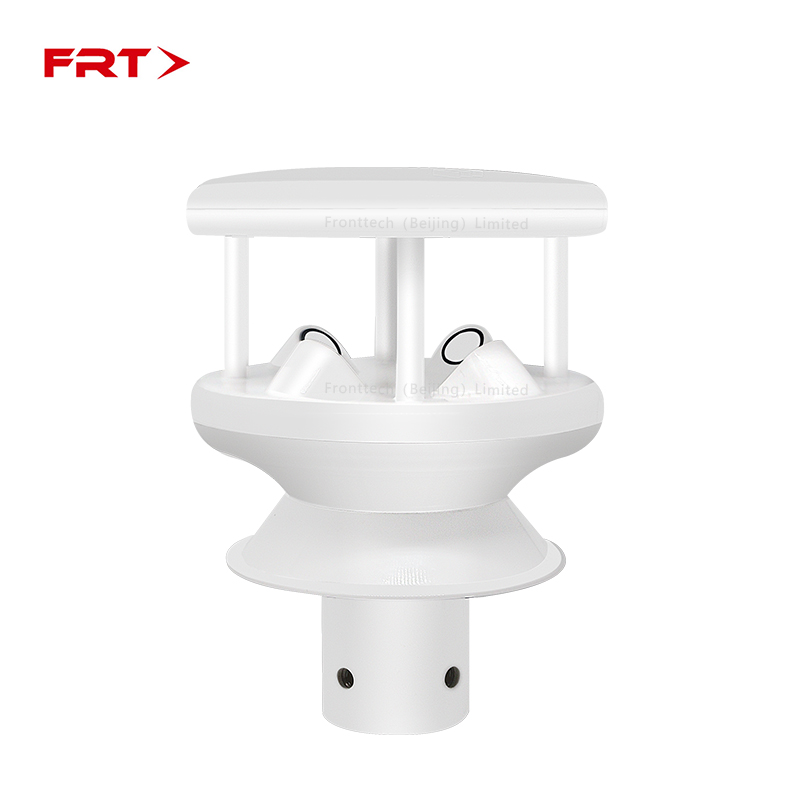

The FRT FWS02 micro integrated meteorological station is an advanced sensor independently developed by our company, specifically designed for measuring multi-element meteorological data. This series of meteorological stations can simultaneously measure various major meteorological elements such as wind speed, wind direction. The design of the FRT FWS02 micro integrated meteorological station aims to provide efficient and reliable meteorological data collection solutions, and provide excellent technical support for users in the field of meteorological monitoring.

Characteristic

Maintenance-free system design, easy installation
Standard communication protocol
Ultra-low power consumption (0.4W), with RS485 output (RS232 optional)
Industrial-grade protective casing ensures long-term durability
Optional built-in modules such as COMPASS, GPRS, and GPS

Applications

Technical Parameters

General

Measurement parameter	Detection range	Resolution	Accuracy	Measurement principle

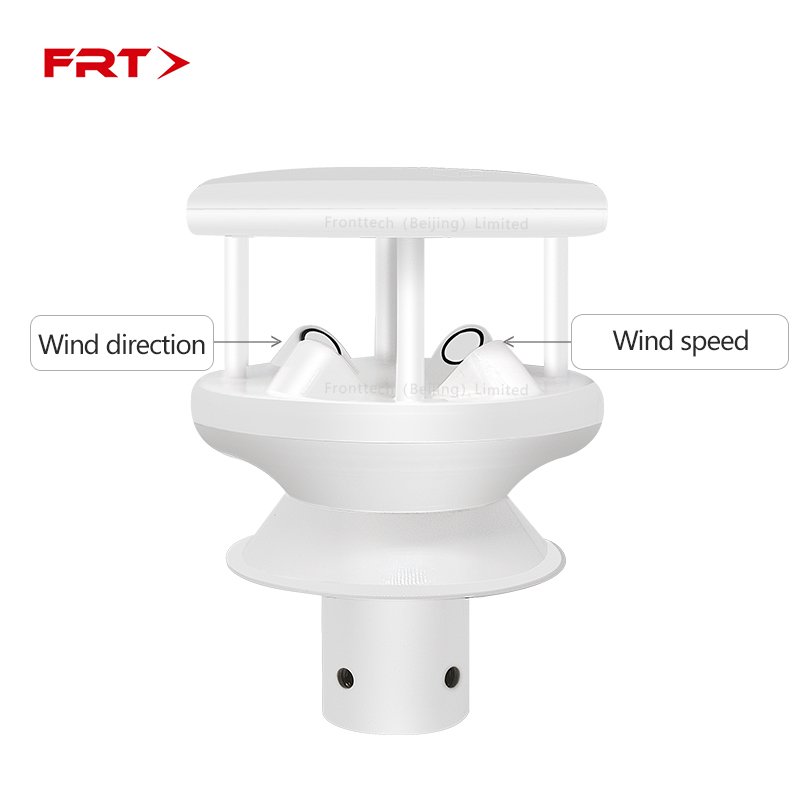

Wind direction	0～360°	1°	±3°	Ultrasonic
Wind speed	0～55m/s	0.1m/s	±0.3m/s or 3%	Ultrasonic
Optional functions include GPRS-a01, WiFi-a02, Ethernet-a03, electronic compass-b01, GPS-b02, and battery-d01

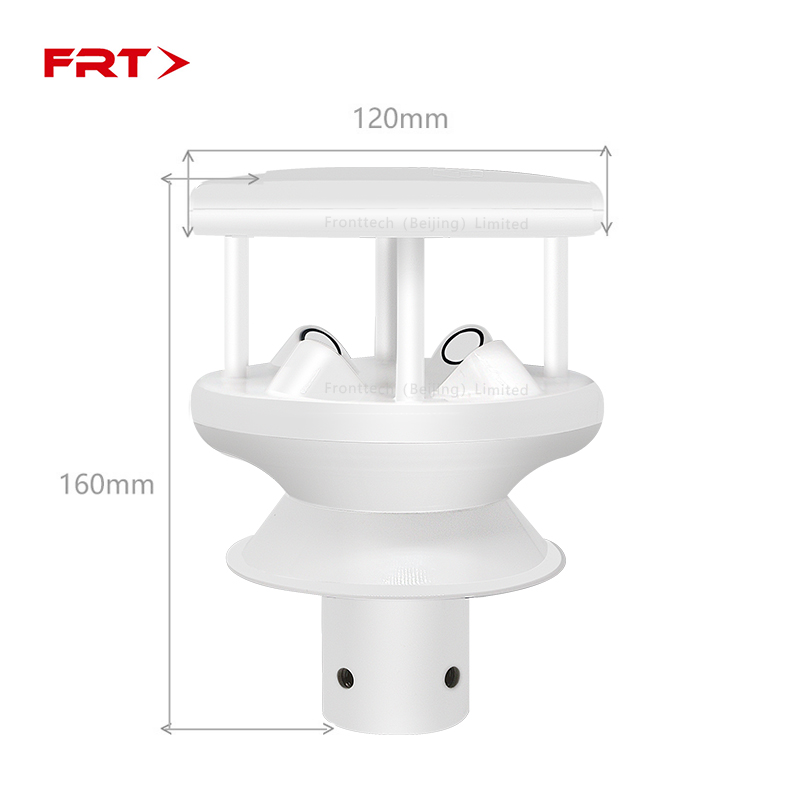

Size	Length: 120mm Width:120mm Height:160mm
Weight	About 0.4kg
Output interface	RS485, RS232, SDI12, 4-20mA, 0-5V optional
Power supply	9-30VDC（ Optional solar and 220V power supply）
Power consumption	<0.4W
Operation temperature	-40℃～+85℃
Relative humidity at work	0～100%Rh
Length	Default 3.5m (extendable)
Degrees of protection provided by enclosure	IP65
Apply to	Pole diameter 30-36mm
Agreement	Supports both ASCII protocol and Modbus RTU protocol simultaneously

FAQ

1. who are we?
We are based in Beijing, China, start from 2015,sell to Southeast Asia(18.00%),North America(14.00%),Southern Europe(10.00%),Mid East(10.00%),South America(9.00%),Central America(8.00%),Eastern Europe(8.00%),Western Europe(8.00%),South Asia(5.00%),Africa(3.00%),Eastern Asia(3.00%),Northern Europe(2.00%),Domestic Market(1.00%),Oceania(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Meteorological sensor,Gas sensor,Agrometeorological station,Optical rain sensor,Data logger

4. why should you buy from us not from other suppliers?
Fronttech (Beijing) Co., Ltd is with high degree of product integration, strong research and development capabilities, quick delivery time, Professional product testing system, and a sound quality and after-sales protection system.

5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal;
Language Spoken:English,Chinese
