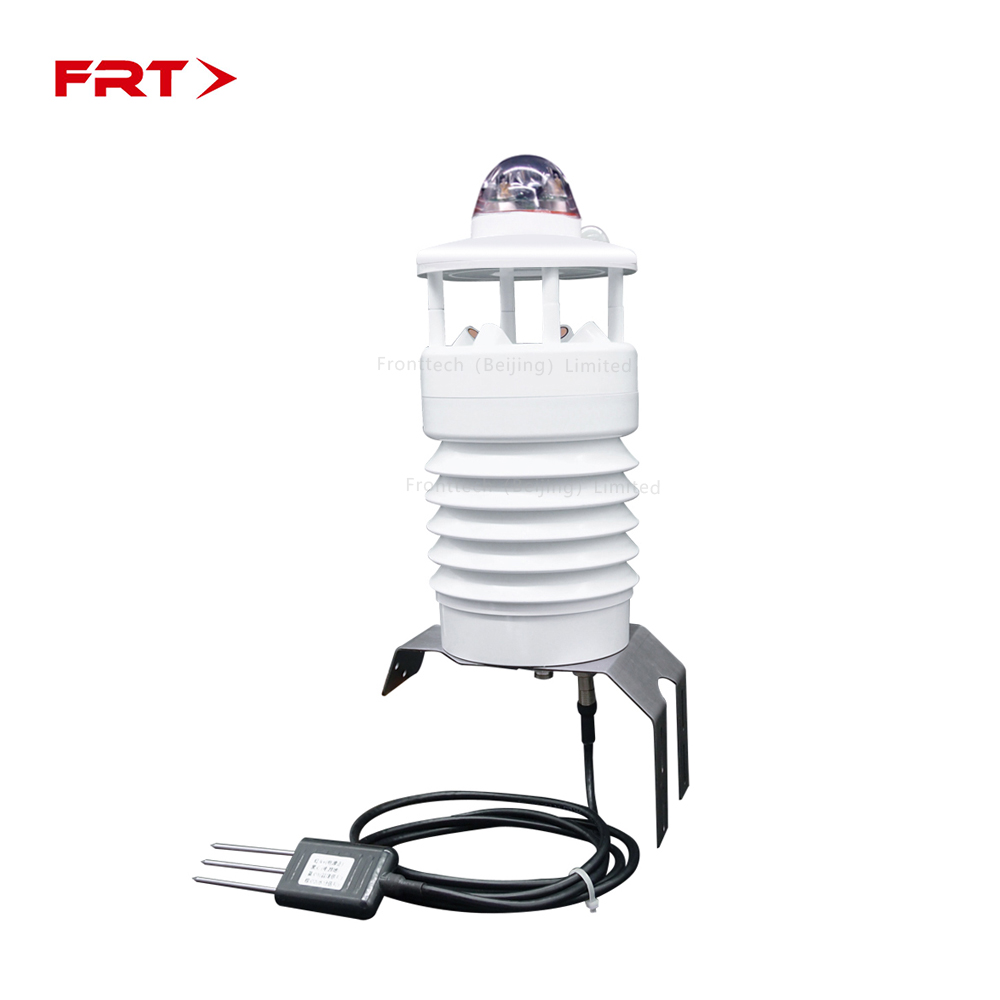

FRT F900 Intelligent agricultural meteorological station

WEATHER SENSOR

Model Number : FRT F900

Overview

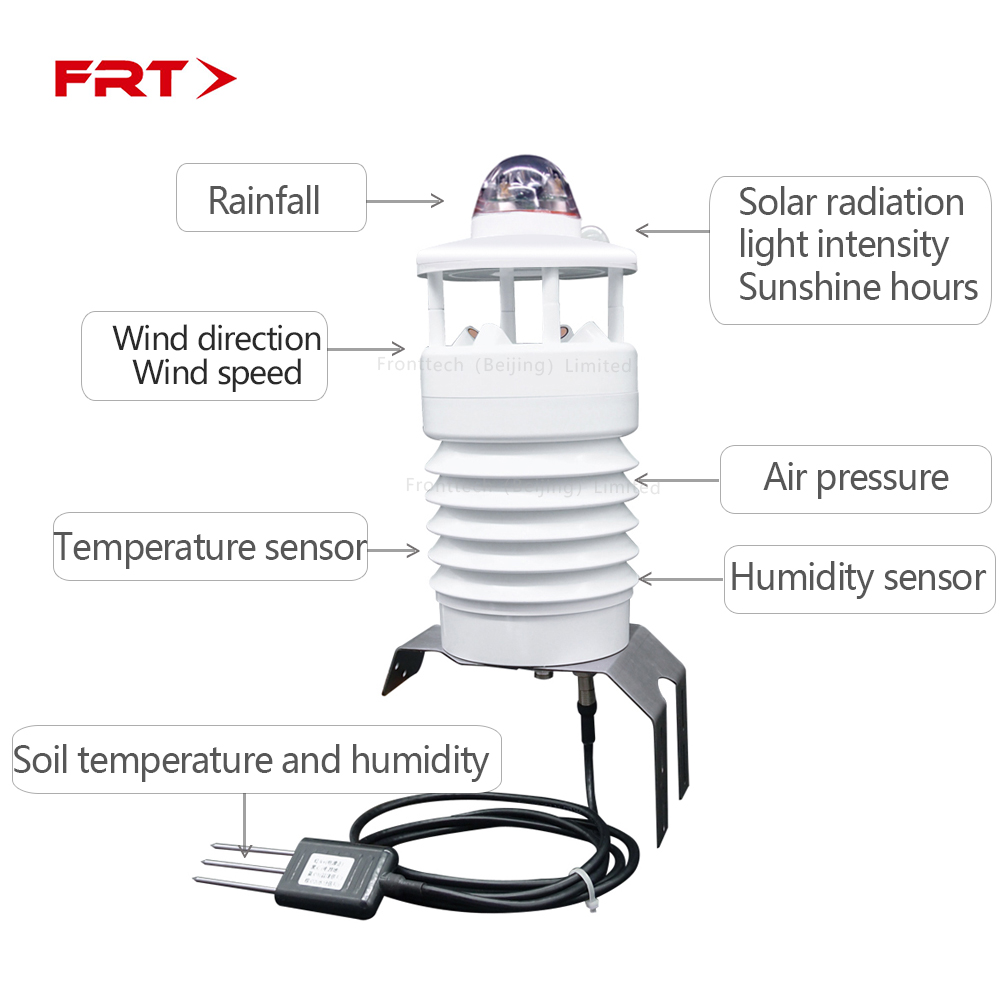

The FRT F900 intelligent agricultural meteorological station is a professional level equipment independently developed by our company, used for environmental monitoring in the agricultural field. It can simultaneously measure eleven key meteorological parameters: temperature, humidity, air pressure, wind speed, wind direction, rainfall, solar radiation, light intensity, sunshine hours, soil temperature, and soil moisture. This sensor has the characteristics of high accuracy, fast response time, strong anti-interference ability, and stable serial output. Users can directly connect sensors to PCs or external devices for real-time data collection.

Characteristic

Maintenance-free system design, easy installation
Standard communication protocol
Ultra-low power consumption (0.4W), with RS485 output (RS232 optional)
Industrial-grade protective casing ensures long-term durability
Optional built-in modules such as COMPASS, GPRS, and GPS

Applications

Technical Parameters

General

Measurement parameter	Detection range	Resolution	Accuracy	Measurement principle
Temperature	-40℃～+85℃	0.1℃	±0.2℃	Rtd
Humidity	0%~100%Rh	0.1%Rh	±2%Rh	Capacitance
Pressure	300～1200hpa	0.1hpa	±0.3hpa	Silicon piezoresistive type
Wind direction	0～360°	1°	±3°	Ultrasonic
Wind speed	0～75m/s	0.1m/s	±0.3m/s or 3%	Ultrasonic
Rainfall	0～5mm/min	0.1mm/0.01mm	±5%	Optics / Piezoelectric / Radar
Radiation	0 ~ 2000w/m2	1w/m2	±5%F.S	Photodetector
Light intensity	0 ~ 200000Lux	1Lux	±5%F.S	Photoelectric Conversion
Sunshine duration	0 ~24 h	0.1h	0.1h	Silicon photodetector
Soil temperature	-50℃ ~ + 85℃	0.1℃	±0.2℃	Platinum
Soil humidity	0 ~ 100%	0.1%	±2%	EMP
Optional functions include GPRS-a01, WiFi-a02, Ethernet-a03, electronic compass-b01, GPS-b02, and battery-d01

Output interface	RS485, RS232, SDI12, 4-20mA, 0-5V optional
Power supply	9-30VDC（ Optional solar and 220V power supply）
Power consumption	<0.4W
Operation temperature	-40℃～+85℃
Relative humidity at work	0～100%Rh
Length	Default 3.5m (extendable)
Degrees of protection provided by enclosure	IP65
Apply to	Pole diameter 60-76mm
Agreement	Supports both ASCII protocol and Modbus RTU protocol simultaneously

FAQ

1. who are we?
We are based in Beijing, China, start from 2015,sell to Southeast Asia(18.00%),North America(14.00%),Southern Europe(10.00%),Mid East(10.00%),South America(9.00%),Central America(8.00%),Eastern Europe(8.00%),Western Europe(8.00%),South Asia(5.00%),Africa(3.00%),Eastern Asia(3.00%),Northern Europe(2.00%),Domestic Market(1.00%),Oceania(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Meteorological sensor,Gas sensor,Agrometeorological station,Optical rain sensor,Data logger

4. why should you buy from us not from other suppliers?
Fronttech (Beijing) Co., Ltd is with high degree of product integration, strong research and development capabilities, quick delivery time, Professional product testing system, and a sound quality and after-sales protection system.

5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal;
Language Spoken:English,Chinese
