FRT AQM606 Gas Monitoring Sensor

WEATHER SENSOR

Model Number : FRT AQM606

Overview

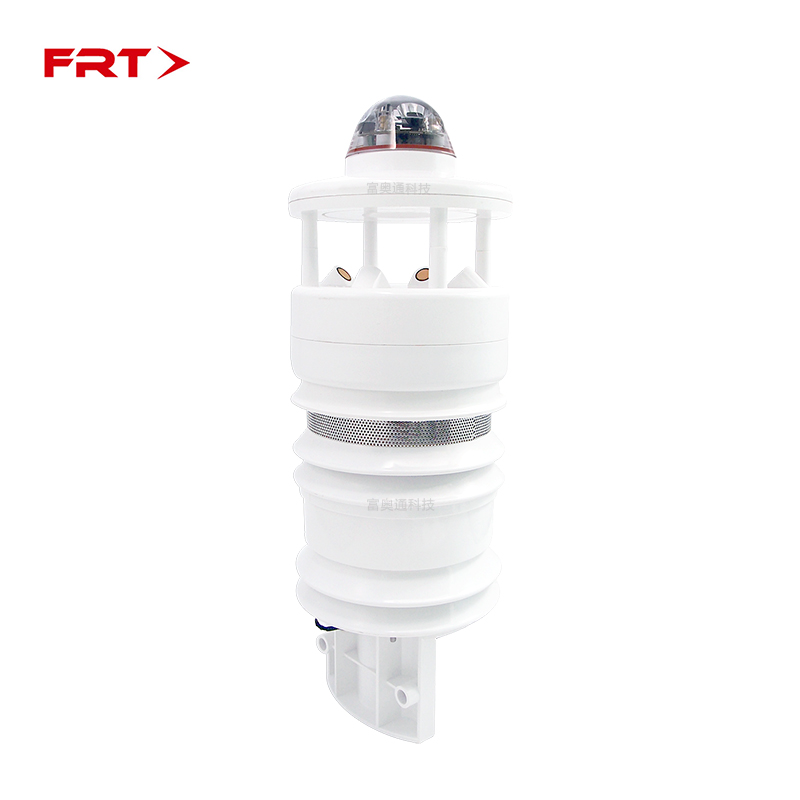

The FRT AQM606 Air Quality Monitoring Station is a multi-parameter sensor system independently developed by our company. It can detect major air pollutants such as PM2.5, PM10, SO₂, NO₂, CO, and O₃, while also integrating modules for monitoring atmospheric temperature, humidity, wind direction, wind speed, and rainfall levels. The system features a modular design, allowing flexible configuration, compact size, and cost efficiency, making it ideal for networked, high-density, and precision air quality monitoring applications.

Characteristic

Supports station-level calibration with industrial-grade design
Ultra-low power consumption(0.4w); ideal for battery-powered scenarios
Uses PID sensors to accurately detect a wide range of VOCs
Compact size, lightweight, maintenance-free, and easy to install
All-in-one design with excellent scalability for networked monitoring

Applications

Technical Parameters

General

Measurement	Detection range	Resolution	Accuracy	Measurement principle
Temperature	-50℃～+80℃	0.1℃	±0.2℃	Rtd
Humidity	0%~100%Rh	0.1%Rh	±2%Rh	Capacitance
Pm2.5/10	0～1000μg/m3	0.3μg/m3	±10μg/m3	Laser Scattering
Wind Direction	0～ 360°	1°	±3°	Ultrasonic
Wind Speed	0～75m/s	0.1m/s	±0.3m/s or 3%	Ultrasonic
Atmospheric Pressure	10～1300hPa	0.1hPa	±0.3hPa	Silicon Piezoresistive
Rainfall	0～5mm/min	0.1mm	±5%	Optical
Optional functions include GPRS-a01, WiFi-a02, Ethernet-a03, electronic compass-b01, GPS-b02, and battery-d01

Measurement Parameter	Detection Range	Detection Limit	Measurement Principle
NO2	0～20ppm	5ppb	Electrochemical
SO2	0～100ppm	5ppb	Electrochemical
CO	0～1000ppm	0.1ppm	Electrochemical
O3	0～20ppm	5ppb	Electrochemical

size	Length: 140mm Width:140mm Height:350mm
Weight	About 1.65kg
Output interface	RS485, RS232 optional
Power supply	9-30VDC（ Optional solar and 220V power supply）
Power consumption	<0.4W
Operation temperature	-50℃～+80℃
Relative humidity at work	0～100%Rh
Length	Default 3.5m (extendable)
Degrees of protection provided by enclosure	IP65
Apply to	Pole diameter 60-76mm
Agreement	Supports both ASCII protocol and Modbus RTU protocol simultaneously

FAQ

1. who are we?
We are based in Beijing, China, start from 2015,sell to Southeast Asia(18.00%),North America(14.00%),Southern Europe(10.00%),Mid East(10.00%),South America(9.00%),Central America(8.00%),Eastern Europe(8.00%),Western Europe(8.00%),South Asia(5.00%),Africa(3.00%),Eastern Asia(3.00%),Northern Europe(2.00%),Domestic Market(1.00%),Oceania(1.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Meteorological sensor,Gas sensor,Agrometeorological station,Optical rain sensor,Data logger

4. why should you buy from us not from other suppliers?
Fronttech (Beijing) Co., Ltd is with high degree of product integration, strong research and development capabilities, quick delivery time, Professional product testing system, and a sound quality and after-sales protection system.

5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:null;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal;
Language Spoken:English,Chinese
