FRT AQM602 Gas Monitoring Sensor

WEATHER SENSOR

Model Number : FRT AQM602

Overview

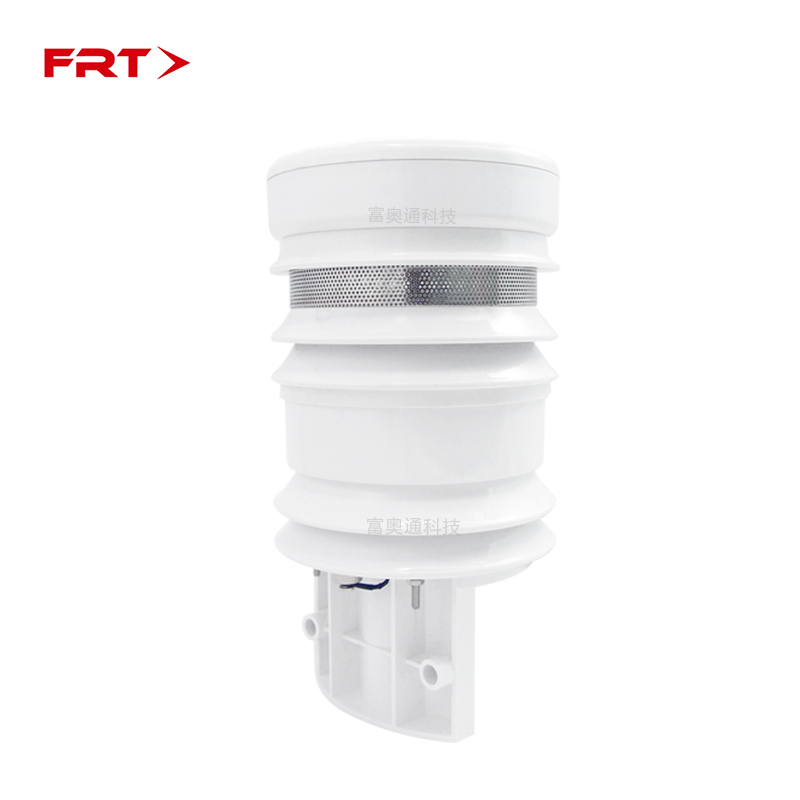

The FRT AQM602 Air Quality Monitoring Station is a multi-parameter air monitoring device independently developed by our company. It can detect environmental pollutants such as PM2.5, PM10, SO₂, NO₂, CO, and O₃, while also integrating additional modules for monitoring atmospheric temperature, humidity, and other key factors. The system features a modular design for flexible configuration, compact size, and cost efficiency, making it ideal for networked, high-density, and precision monitoring applications.

Characteristic

Supports station-level calibration with industrial-grade design
Ultra-low power consumption(0.4w); ideal for battery-powered scenarios
Uses PID sensors to accurately detect a wide range of VOCs
Compact size, lightweight, maintenance-free, and easy to install
All-in-one design with excellent scalability for networked monitoring

Applications

Technical Parameters

General

Measurements	Detection range	Resolution	Accuracy	Measurement principle
Temperature	-50℃～+80℃	0.1℃	±0.2℃	Rtd
Humidity	0%~100%Rh	0.1%Rh	±2%Rh	Capacitance
Optional functions include GPRS-a01, WiFi-a02, Ethernet-a03, electronic compass-b01, GPS-b02, and battery-d01

Measurement Parameter	Detection Range	Detection Limit	Measurement Principle
NO2	0～20ppm	5ppb	Electrochemical
SO2	0～100ppm	5ppb	Electrochemical
CO	0～1000ppm	0.1ppm	Electrochemical
O3	0～20ppm	5ppb	Electrochemical

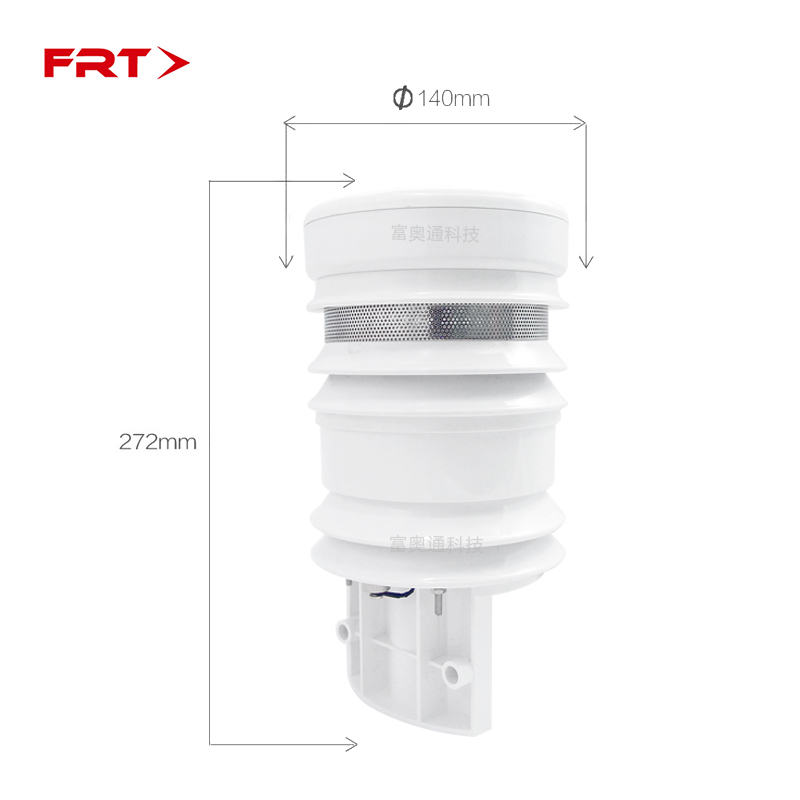

size	Length: 140mm Width:140mm Height:272mm
Weight	About 1.25kg
Output interface	RS485, RS232 optional
Power supply	9-30VDC（ Optional solar and 220V power supply）
Power consumption	<0.4W
Operation temperature	-50℃～+80℃
Relative humidity at work	0～100%Rh
Length	Default 3.5m (extendable)
Degrees of protection provided by enclosure	IP65
Apply to	Pole diameter 60-76mm
Agreement	Supports both ASCII protocol and Modbus RTU protocol simultaneously
