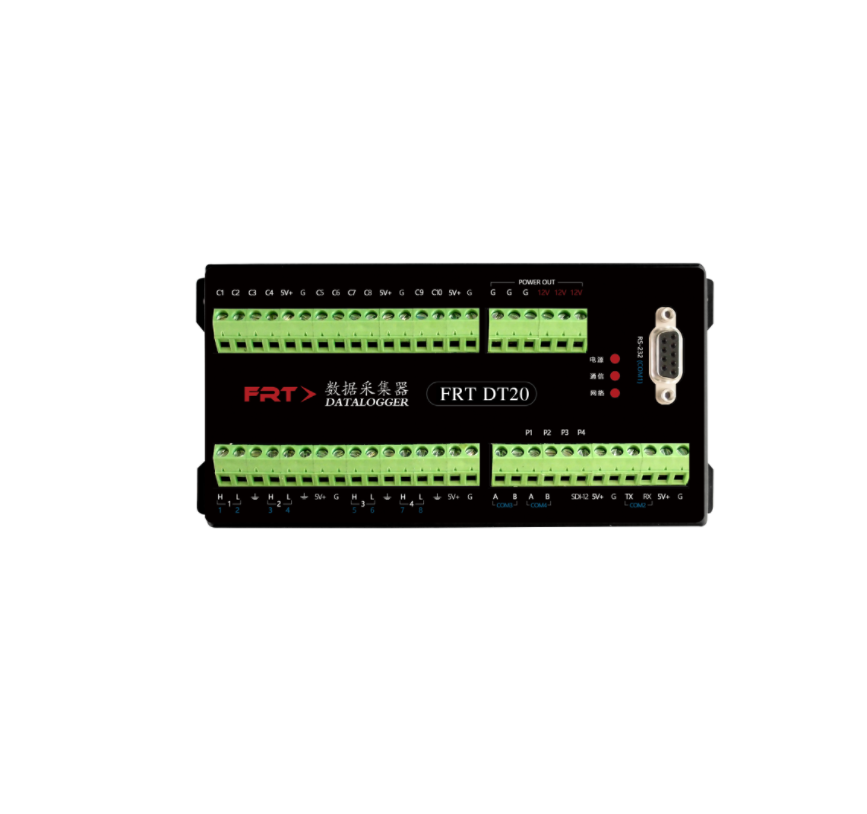

FRT DT20 Data logger

Model Number : FRT DT20

Overview

The DT20 data collector is a multi-purpose, low-power, and can be redeveloped (supporting LUA scripts) data collection device. By embedding LUA scripts, the collector can collect data from various sensors related to hydrology, meteorology, environment, and other fields, including RS485 RS232、 Voltage analog quantity, sine wave digital quantity, pulse digital quantity, etc. The collected data can be stored on an SD card, transmitted to the website backend or viewed directly through a serial port. The data collection time and data upload time of the collector can be set through scripts, and they are independent of each other.

Characteristic

Including software, independent configuration of coefficients through software
Equipped with enhanced DSP data functionality
9-30V wide power input range.
Durable and sturdy, suitable for use in various harsh environments
Secondary development can be carried out through configuring scripts

Applications

Technical Parameters

General

Definition Of DT20 Wiring Terminal
Single ended voltage	1H、2L、3H、4L、5H、6L、7H、8L
Differential Voltage	1H-2L、3H-4L、5H-6L、7H-8L
4-20mA (requires lightning protection board)	1H、2L、3H、4L、5H、6L、7H、8L
Sine wave	C1、C2、C3、C4、C5、C6、C7、C8、C9、C10
Pulse	P1、P2、P3、P4
RS-232	COM1、COM2
RS-485	COM3、COM4
SDI-12	P4
Input Voltage	12V-G
Output Voltage	12V-G、5V+-G(controlled)

Analog Channel	24 bit ADC sampling accuracy; Can be configured with 8 channels of 4-20mA current (optional) or 8 channels of single ended analog voltage (0-5V) or 4 channels of differential analog voltage or 2 channels of PT100 (four wire system); Maximum sampling speed of 4.8kHz;
Digital Channel	10 channels of sine wave acquisition (C1 to C8), 8 channels of pulse acquisition(P1 to P4), P4 can be configured as SDI12 inputs
Serial Port Channel	Simultaneously supporting functions such as 2 channels RS-232, 2 channels RS-485. RS-232 and RS-485 can support both input and output functions simultaneously
Secondary Development	Can be further developed using Lua language to reduce the difficulty of system access
Accuracy Of Analog Measurement	±0.05%（0℃-40℃）；±0.08%（<0℃,40℃-80℃）
Internet Protocol	Ethernet,IPv4,IPv6,UDP,TCP,HTTP(S),SFTP,GPRS,MQTT
Communication Protocol	SDI12,Modbus,TCP,UDP,Private Customization Protocol
Voltage Excitation	7 sets of 5V excitation power supplies, which can be controlled on and off through scripts
Data Storage	Built in board storage: 256MB; SD card: 8GB (optional)
Real Time Clock	Crystal oscillator highly integrated clock, ± 3.8PPM error, full temperature range compensation
Average Power	About 0.5W(12VDC 43ma)
work environment	-40℃-80℃）

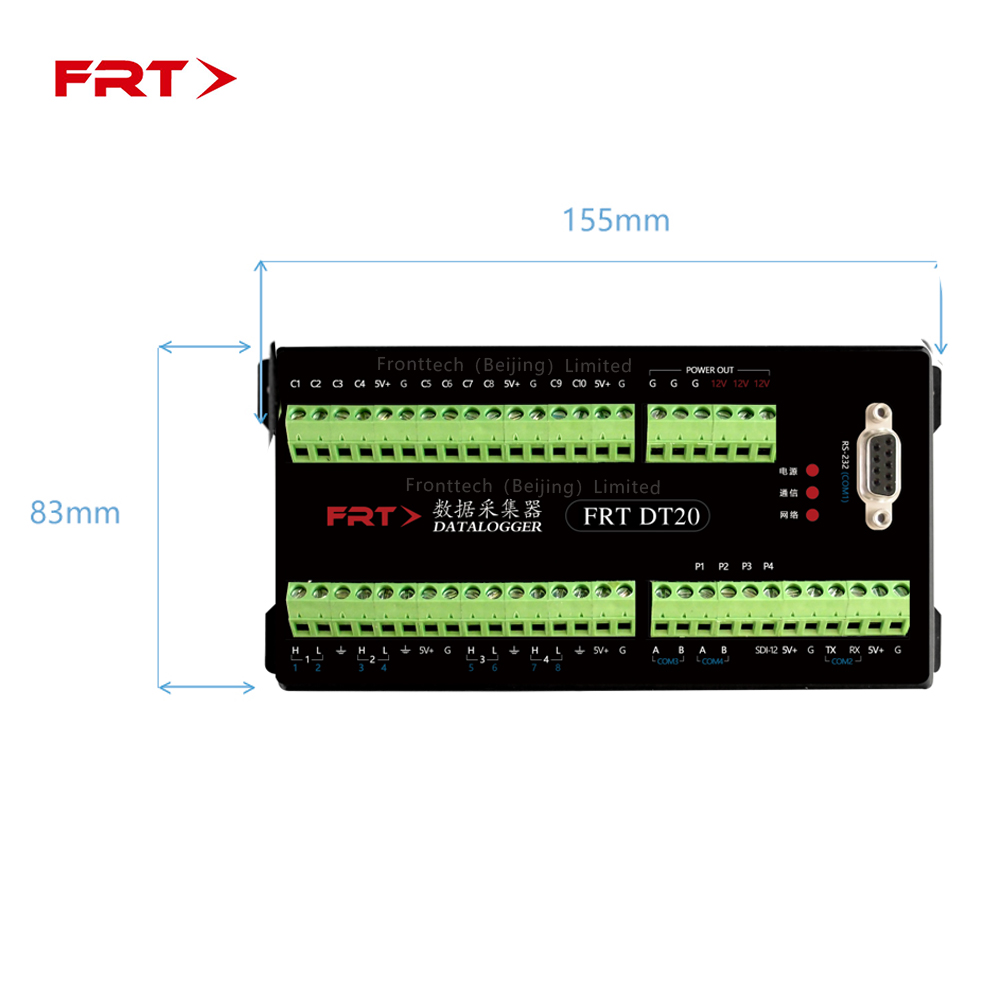

Size	Length: 155mm Width:83mm Height:30mm
Weight	About 0.35kg
Power supply	9-30VDC（ Optional solar and 220V power supply）
Apply To	Suitable for various industries such as environmental protection, meteorology, oceanography, smart cities, etc
